Branded & Custom Packaging Services
Custom-designed packaging solutions for branded titanium products.
Packaging Process Spectrum
Three dedicated titanium logistics protection workflows — engineered for precision foam nesting, marine-grade corrosion barriers, and heavy-lift export crating.

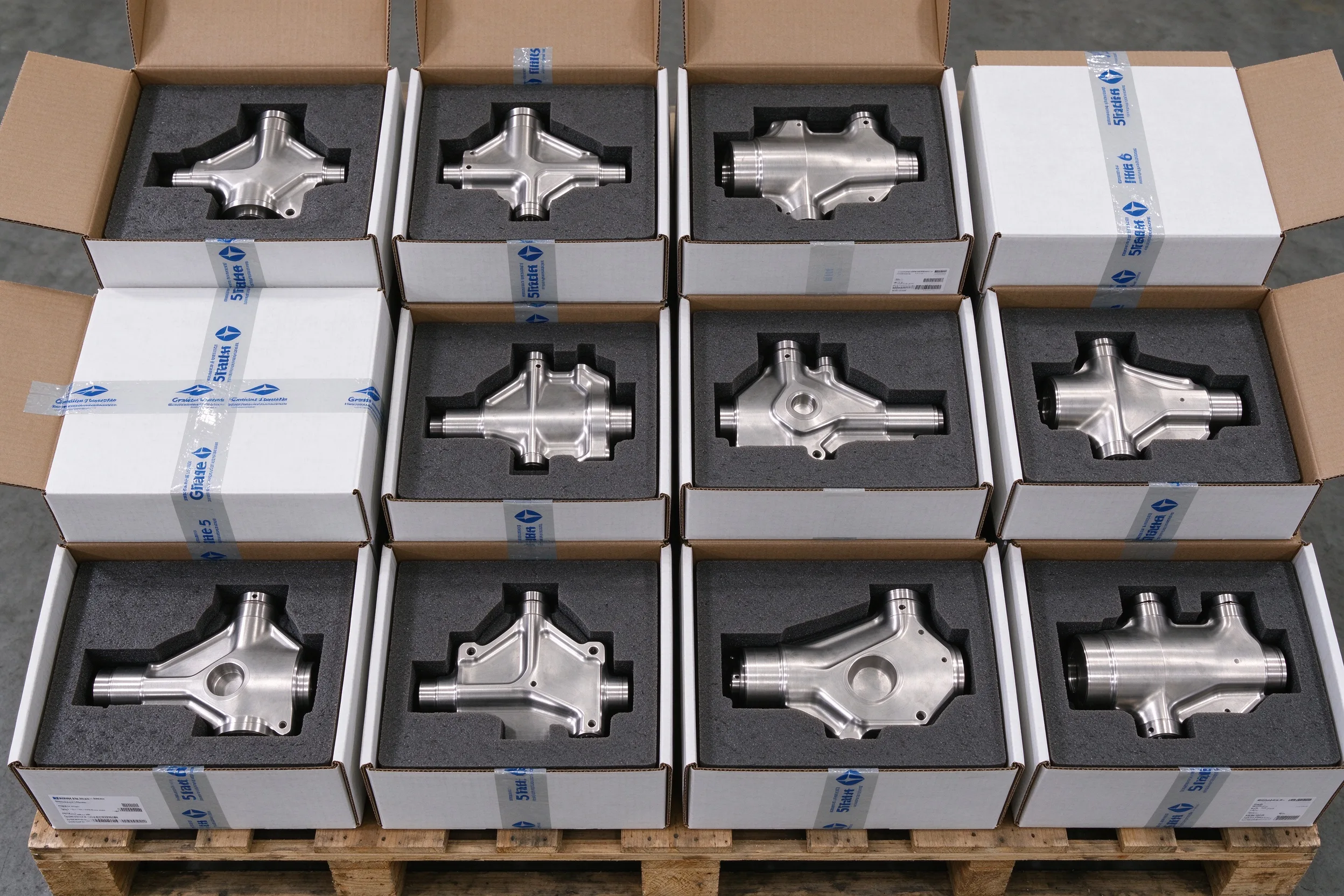

Custom Form-Fitting CNC Foam
Milling high-density acid-free EPE/EVA cavities matched to individual 3D component CAD profiles to fully block transit vibrations and eliminate surface contact abrasion.
- CNC-routed 3D foam cavity milling from EPE or EVA — densities from 20–100 kg/m³ per application
- Cavities matched directly from customer STEP/IGES CAD files, ensuring ±0.5 mm fit tolerance for each component contour
- Acid-free certified foam formulations (pH 6.5–7.5 per TAPPI T 509) — zero outgassing or chemical migration onto polished/anodized titanium surfaces
- Multi-layer nesting: individual components sealed in separated cavities with 50 mm minimum foam walls for impact energy dissipation
VCI Marine Corrosion Barriers
Deploying anti-static vacuum-sealed Volatile Corrosion Inhibitor films to emit protective atmospheres, isolating alloy skins from ocean salt-spray during sea freight.
- Multi-layer VCI film construction: anti-static polyethylene outer, VCI-impregnated middle layer, and low-friction inner contact ply
- Vacuum-sealed enclosure emits continuous molecular VCI vapor (amine carboxylates) that forms a mono-molecular protective layer on all exposed metal surfaces
- Zero VCI residue on titanium — films leave no trace after unwrapping, eliminating post-shipment cleaning for downstream assembly lines
- Validated for 24-month continuous anti-corrosion protection in ASTM D1749 marine environment simulation (40°C, 95% RH, salt-fog cyclic)
ISPM-15 Certified Export Crating
Constructing heavy-duty non-fumigation plywood enclosures with localized structural tie-downs to secure heavy multi-ton assemblies under rough crane lifts and container stacking.
- 100% ISPM-15 compliant heat-treated (HT) plywood and timber — certified phytosanitary, requires no methyl bromide fumigation
- Engineered structural tie-down points with threaded steel inserts rated to 5,000 kg per anchor point — secured to crate base via M16 bolts
- Finite element analysis (FEA) optimized crate designs for multi-ton assemblies — validated to withstand 8-point container stacking loads at sea
- Full documentation package: ISPM-15 stamp, packing list, photo log, and lift/crane instruction diagrams affixed to crate exterior
Packaging Specifications Dashboard
Our packaging chemical purity limits, structural toughness credentials, corrosion barrier duration, and ERP-integrated traceability benchmarks.
Liner Purity Index
100% acid-free chemical boundaries ensuring zero microscopic degradation on anodized films — pH 6.5–7.5 certified per TAPPI T 509 for all foam and liner contact materials.
Transit Drop Protection
Fully compliant under strict ISTA 2A / 3A sequential shock and drop configurations — validated via accelerometer-instrumented package testing for global freight conditions.
VCI Shield Lifespan
Securing up to 24 Months continuous anti-corrosion barrier tracking inside harsh cargo holds — validated per ASTM D1749 marine environment simulation at 40°C, 95% RH.
Bay Sorting Traceability
100% digital labeling integration compatible with customer-side ERP/SAP scanning grids — custom barcodes, QR codes, and serialized labels for reverse auditing to raw Heat Numbers.
All specifications measured under ISTA 2A/3A transit testing, ASTM D1749 corrosion simulation, and TAPPI T 509 purity standards. Actual results depend on component geometry, shipping route, and environmental conditions.
Smearing Prevention & Warehouse Interlock Engineering
Two critical packaging challenges — conquering transit smear damage on polished surfaces and locking down full ERP traceability from outfeed packing to customer receipt.
Molecular Anti-Friction Liners
During transit, micro-vibrations from truck/sea freight cause polished titanium surfaces to slide against standard packaging foams, generating fine metallic smear tracks — compromising mirror-finish surfaces and requiring costly re-polishing before customer acceptance.
Ultra-Clean Low-Friction Films or Medical Non-Woven Sheets Before Foam Nesting — Bleeding Off Friction Stress to Lock Out Transport Scuffs
- Polished titanium components are first enclosed in ultra-clean low-friction films (PE micro-perforated slip film, µ_k < 0.15) or medical-grade non-woven spunbond polyester sheets (50 g/m², pH neutral)
- Primary low-friction layer bleeds off tangential sliding stress (coefficient of friction < 0.2) preventing metal-to-foam abrasion during shock events
- Secondary foam cavity (CNC-machined EPE/EVA) provides structural vibration damping — load path isolated from polished surfaces by the anti-friction interface layer
- Validated via 1,000 km simulated truck transport (ISTA 3E) with zero smear tracks on Ra 0.02 µm polished titanium witness coupons — verified by white light interferometry
ERP-Linked Branding & Client Barcoding
Traditional manual labeling during outfeed packaging introduces data transcription errors, lost traceability chains, and inability to rapidly reverse-audit shipped components back to specific raw material heat numbers for quality incident investigations.
Syncing Outfeed Packing Tracking with Digital Databases — Custom Branded Logos Alongside User-Specific Barcodes/QR Codes for Seamless Reverse Material Auditing
- Outfeed packing station integrated with customer ERP/SAP via API — each package label is auto-generated with PO number, line item, heat number, and serialized UID
- Custom-branded packaging with customer logos, part numbers, and handling instructions printed directly onto labels — eliminating manual stenciling and mislabeling risk
- 2D Data Matrix / QR codes encoding full traceability chain: raw material heat → manufacturing batch → inspection results → packaging date → shipping tracking number
- Reverse material auditing capability: scanning any shipped component QR code retrieves full manufacturing history back to original titanium ingot Heat Number and mill certificate within 3 seconds
Every packaging project is backed by anti-friction interface engineering, ERP-integrated labeling systems, and full chain-of-custody traceability. Protected surfaces meet auditable logistics.
Submit Your Packaging & Logistics Quote Request
Aerospace procurement managers, defense program leads, and high-value medical device developers — upload your shipping protocols, component CAD files, and delivery requirements for a rapid 24-hour packaging quote with full logistics engineering assessment. Fully confidential under NDA.
