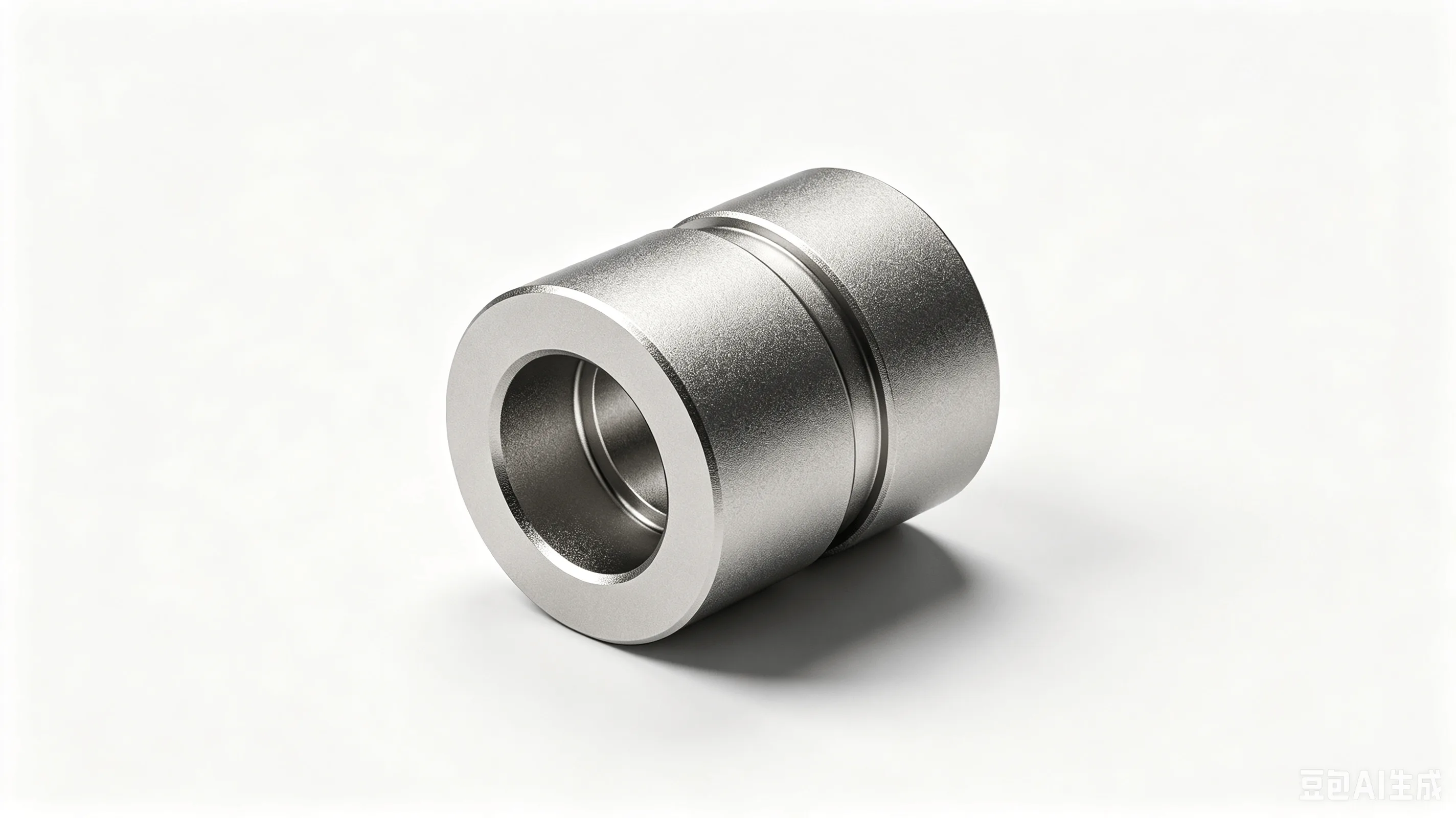

Titanium Shield Stand-off Bushing is an ultra-clean plasma shield standoff component designed for Plasma shield stand-off spacer bushing. Manufactured from Grade 2 CP-Ti with Class 100 cleanroom protocols, it provides the non-magnetic, low-outgassing, and particle-free performance essential for wafer fabrication environments.
Titanium Shield Stand-off Bushing
Titanium Shield Stand-off Bushing
Plasma shield stand-off spacer bushing
| Technical Parameter | Specification Value |
|---|---|
| International Compliance | ASTM B348, ISO 9001 |
| Surface Finish & Max Temp | Bead blasted matte Ra 1.6-3.2um + passivation |
| NDT & Quality Control | Helium Mass Spectrometry Leak Detection per ASTM E493 (<1e-9 mbar·L/s); Particle Count Verification per SEMI E98 (Class 100); Surface Profilometry per ISO 4287 (Ra verification); Positive Material Identification (PMI) via XRF per ASTM E1476; Dimensional verification via CMM per ISO 10360 |
- • 100% Traceability: Mill Test Certificate (EN 10204 3.1) with heat analysis & mechanical testing.
- • NDT Verification: Helium Mass Spectrometry Leak Detection per ASTM E493 (<1e-9 mbar·L/s); Particle Count Verification per SEMI E98 (Class 100); Surface Profilometry per ISO 4287 (Ra verification); Positive Material Identification (PMI) via XRF per ASTM E1476; Dimensional verification via CMM per ISO 10360.
- • Compliance: REACH, RoHS 3 certified. FAI AS9102 available.
- • Process: CNC turning, heat treatment, surface grinding, passivation, dimensional check.
- • Thermal Stress Relief: Post-machining vacuum annealing (540-675°C under Argon) reduces distortion risk >70%.
- • Rolled Threads: Thread rolling (not cutting) increases fatigue limits by 30-50%.
Q: Is Titanium Shield Stand-off Bushing compatible with fluorine-based process chemistries? ▼
Grade 2 CP-Ti has excellent resistance to NF₃, CF₄, SF₆, and other fluorine-based plasma chemistries used in semiconductor etching and chamber cleaning. The TiO₂ passive layer forms a stable TiF₄ reaction product that does not spall or generate particles. However, Titanium Shield Stand-off Bushing should not be used in HF-containing wet processes where corrosion rates exceed 0.5 mm/year.
Q: What is the typical lead time for Titanium Shield Stand-off Bushing orders? ▼
Standard lead time for Titanium Shield Stand-off Bushing is 15-25 business days depending on quantity and complexity. Rush orders (3-5 working days) are available for prototype evaluation. Sample evaluation (1-5 units) can be expedited to 5-7 business days. Volume pricing is available for production quantities above 100 units.
Q: What material certifications are provided with Titanium Shield Stand-off Bushing? ▼
Each Titanium Shield Stand-off Bushing shipment includes EN 10204 Type 3.1 mill test certificate with chemical analysis, mechanical properties, and heat identification. Dimensional inspection reports and Certificate of Conformance (CoC) are standard. First Article Inspection Reports (FAIR) per AS9102 are available on request for plasma shield standoff.
§ Grade 2 CP-Ti Selection for plasma shield standoff
Function
Designed for Semiconductor applications, this component fulfills the role of . The use of Grade 2 CP-Ti (Bead Blasted) ensures long-term reliability in this Chamber Shield configuration.
Specifications
- SKU: TI-SEM-CHA-STANDO
- Category: Chamber Shield
- Industry: Semiconductor
- Material: Grade 2 CP-Ti (Bead Blasted)
- Process: CNC turning, heat treatment, surface grinding, passivation, dimensional check
- Weight: 40% mass reduction vs standard steel components with same load rating
§ UHV Particle & Surface Contamination Verification
Quality Management
Production executed in AS9100D-certified facility. Material certificates, dimensional reports, and surface finish certifications accompany every shipment of Titanium Shield Stand-off Bushing components.
Inspection & NDT
Full dimensional layout per AS9102 FAIR requirements; ultrasonic immersion scanning for volumetric integrity; micro-hardness traverse on heat-affected zones
§ Cleanroom Manufacturing & Finishing Process
Titanium Shield Stand-off Bushing is manufactured using cnc turning, heat treatment, surface grinding, passivation, dimensional check. Each operation is performed by certified machinists with real-time process monitoring and dimensional verification at critical stages. Heat code traceability is maintained throughout all production steps.
Commercial Logistics & Procurement Framework
Pricing and lead times for Titanium Shield Stand-off Bushing are batch-dependent. Contact our supply chain team for volume-based tiered pricing.
Regulatory & Quality Assurance Ledger
Verifiable certifications for Titanium Shield Stand-off Bushing
Material Test Certificate (MTC)
EN 10204 3.1
Environmental Compliance
REACH (EC No 1907/2006)
Restricted Substances
RoHS 3 Directive (2015/863/EU)
Quality Management System
AS9100D
Standard: ASTM B348
Standard: ISO 9001
ISO 9001
Systems Interconnectivity & Topology
Cross-functional integration matrix for Tier-1 supply chains and assembly orchestration.
- ▸ Mechanical Subsystem A
- ▸ Structural Carrier Assembly
Titanium Shield Stand-off Bushing
Material: Grade 2 CP-Ti (Bead Blasted)
SKU: TI-SEM-CHA-STANDO
Industry: Semiconductor / System: Plasma Chamber Liners, Shields & Thermal Hardware
